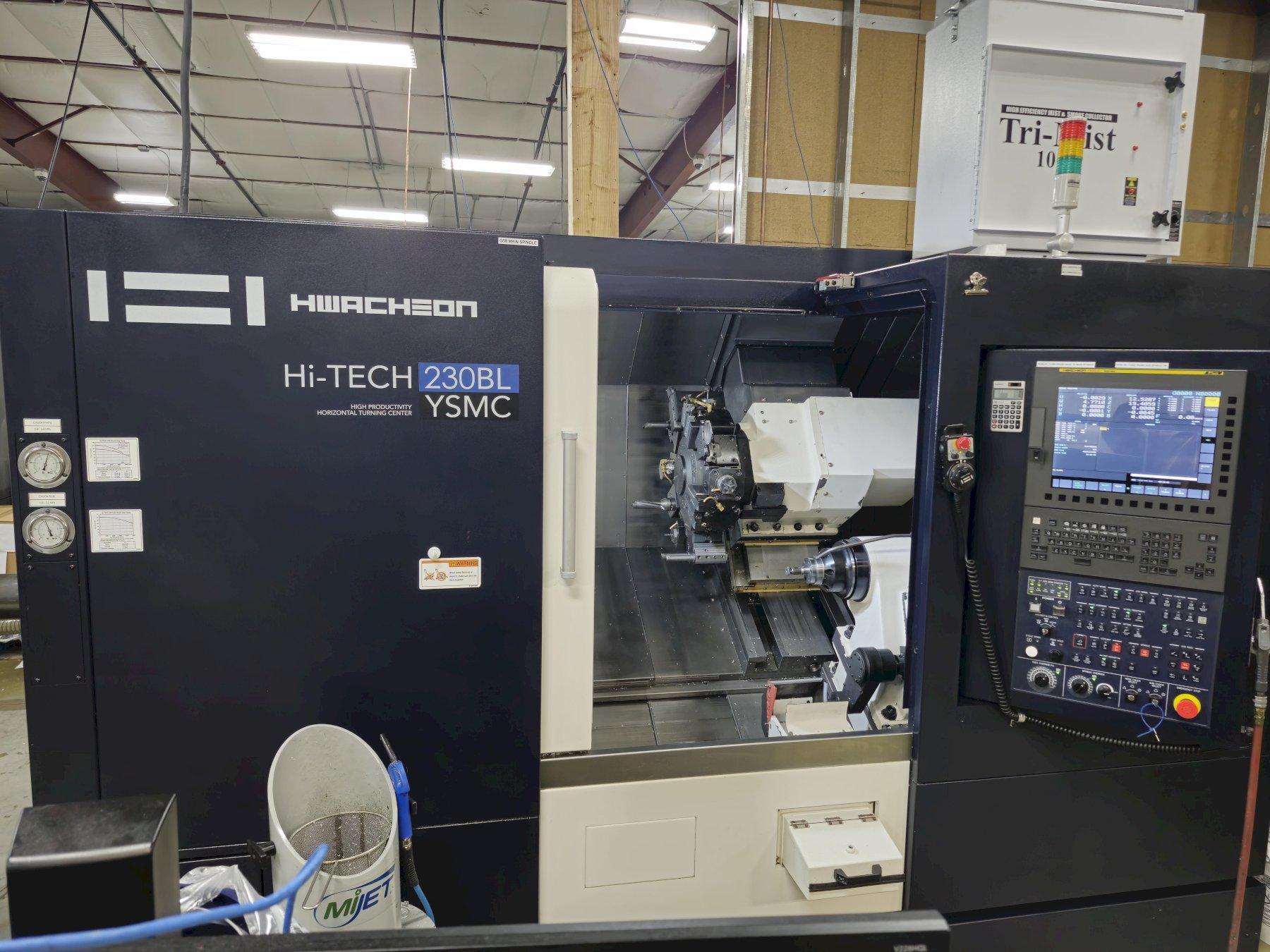

Brand
HWACHEON
Model

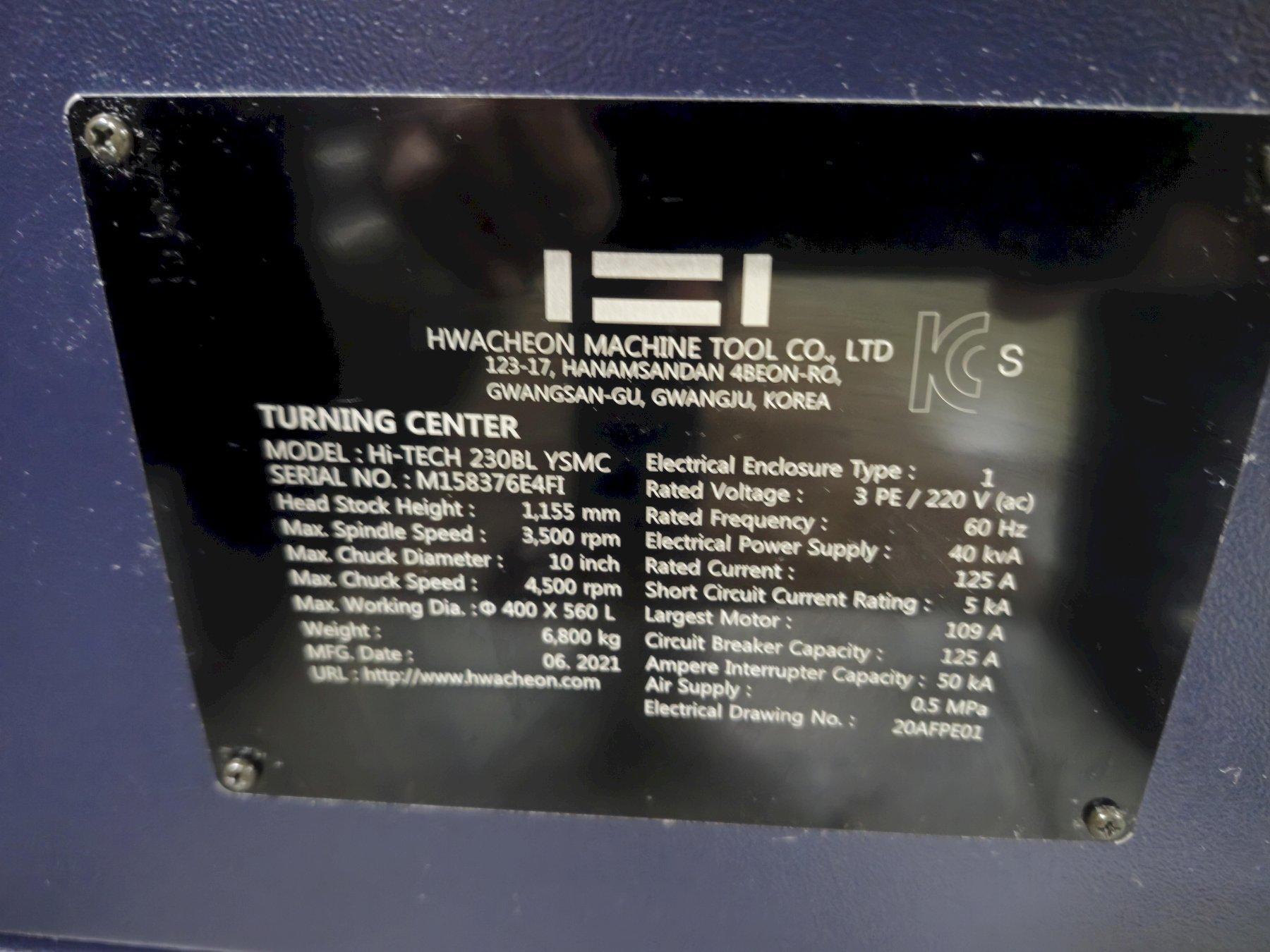

HI-TECH 230BL-YSMC
Type
Lathes, CNC (3-Axis or More)
Stock #
56728
Condition
Excellent
Year
2021
| CNC Control | yes |
| Type of CNC Control | Hwacheon Fanuc Oi-TF Plus |
| Number of Axes | 4 |
| Number of Spindles | 1 |

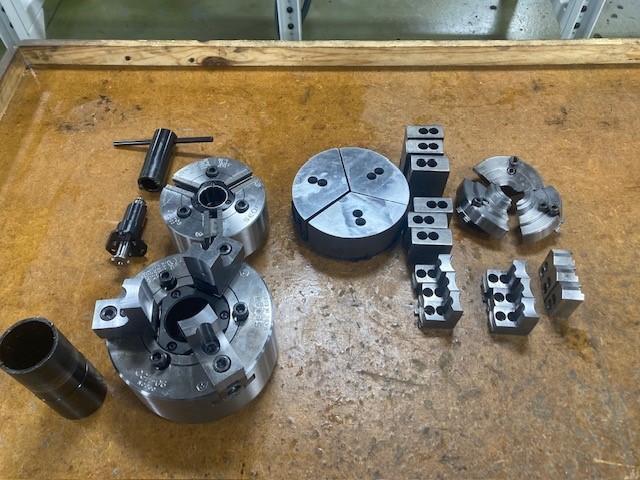

| Chuck Size | 10 inch |
| Spindle Nose | A2-8 |
| Spindle Speed Range | 3500 RPM |
| Max. Swing over Bed | 29.52 |
| Max. Turning Diameter | 15.74 |
| Max. Turning Length | 41.73 |
| Spindle Bore | 3.58 Inchs |
| Max Bar Capacity | 3.1 |
| Spindle Nose | A2-8 |
| X-Axis Travel | 9.4" |
| Z-Axis Travel | 47.24 |
| Y-Axis Travel | 4.72 |

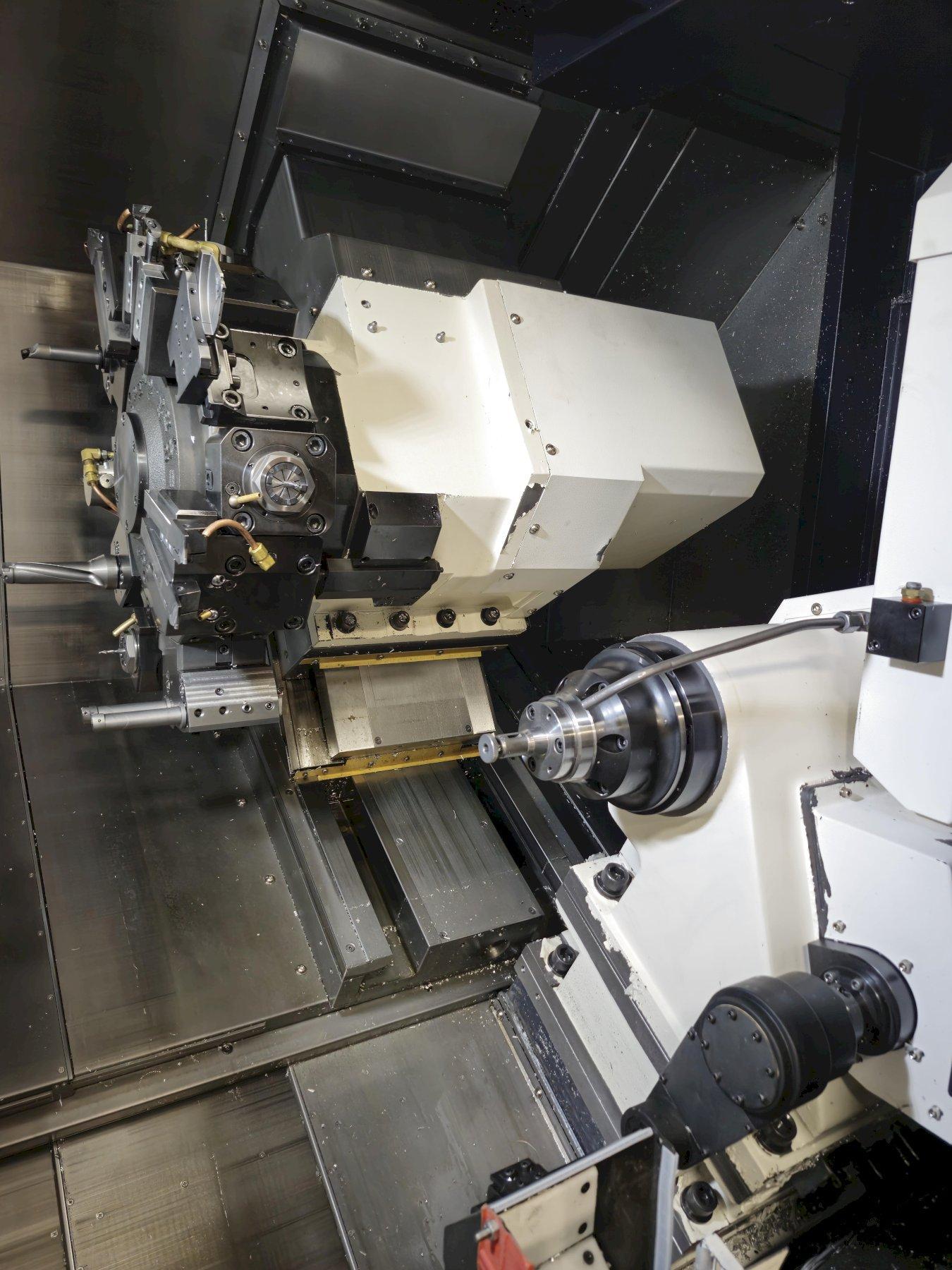

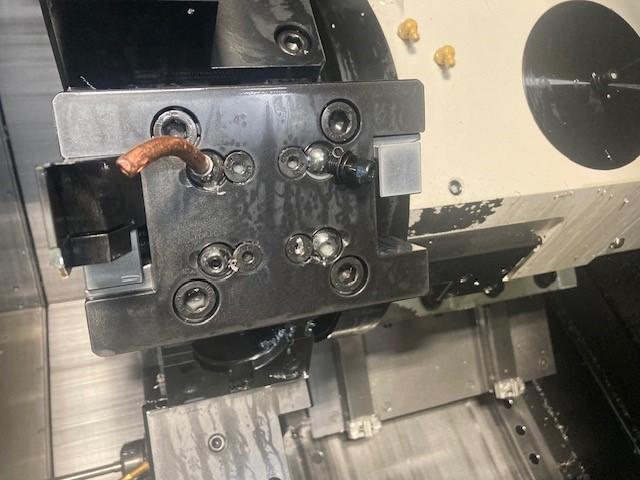

| No. Positions on Turret | 12 |
| Live Milling (Yes / No) | yes |
| Live Tooling Horsepower | 7.3 HP |
| Spindle HP | 24.80 |
| Sub-Spindle HP | 14.75 |
| Sub-Spindle Speed Range | 5000 RPM |

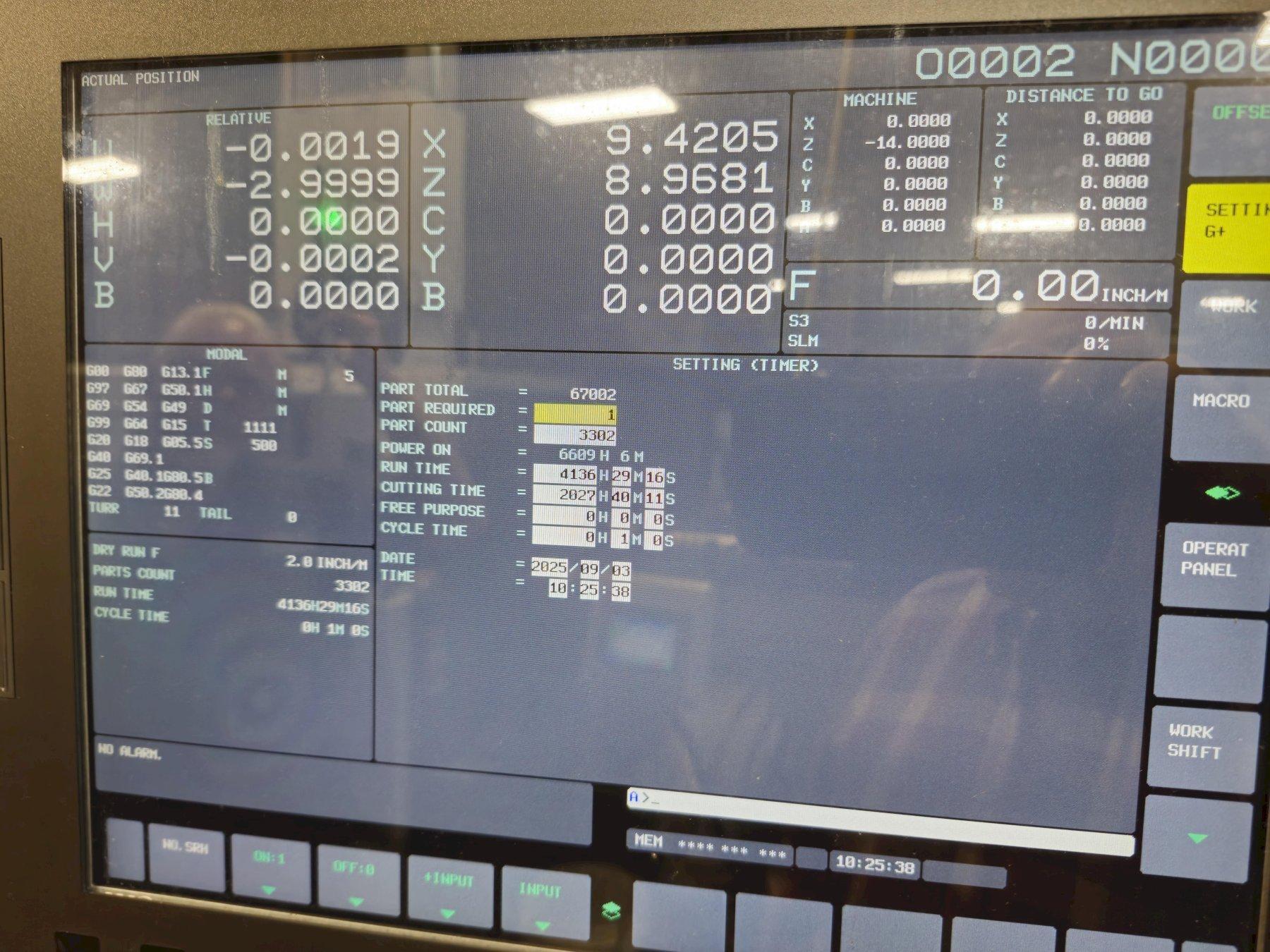

| Hours: Power ON | 6609 |
| Hours: Cut Time | 2027 |
| Dimensions | L 147.75 x W 75.74 x HT 82.83 |
| Machine Weight | 18370 Lbs. |

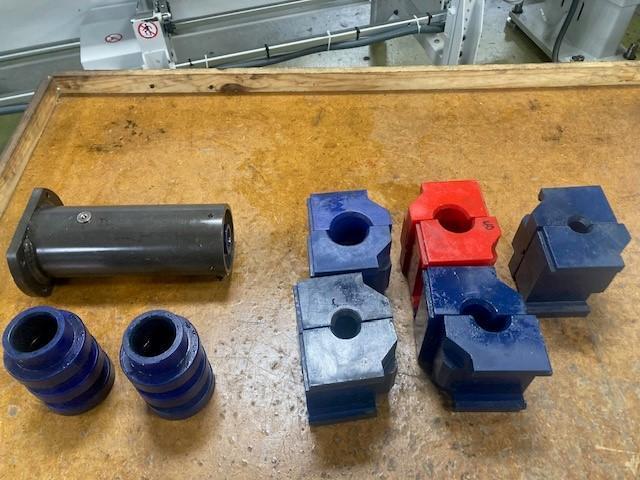

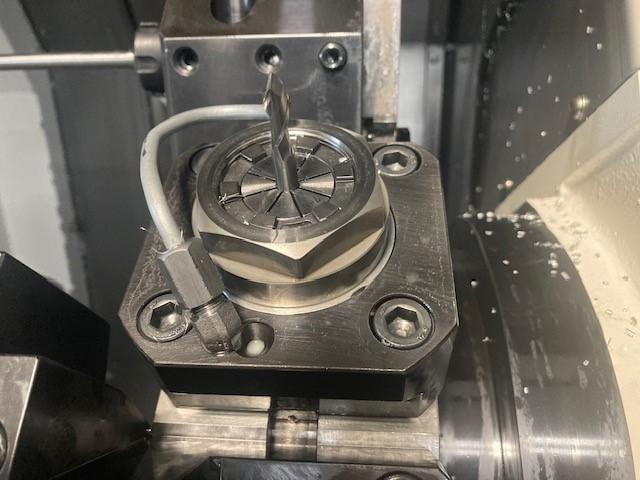

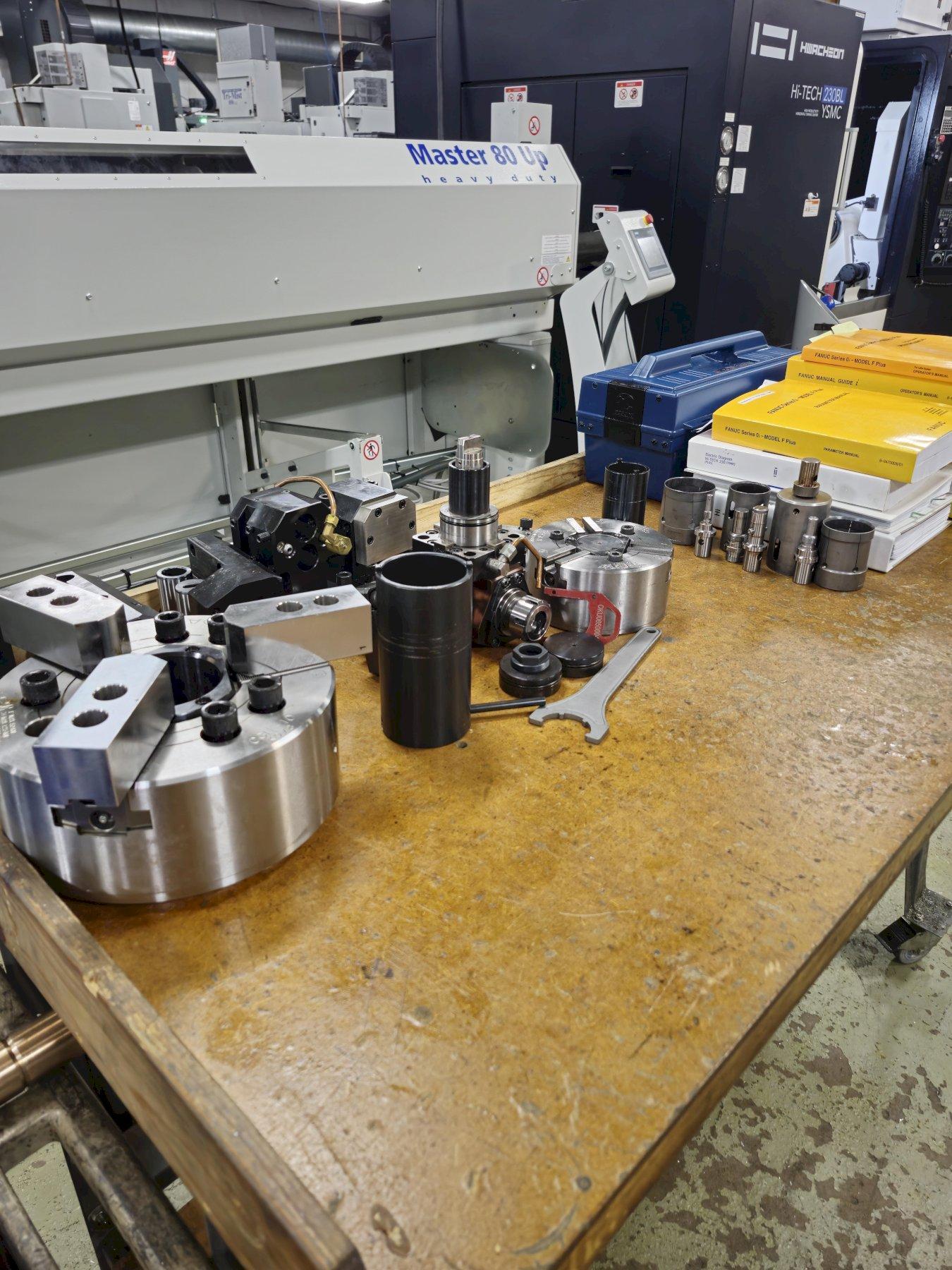

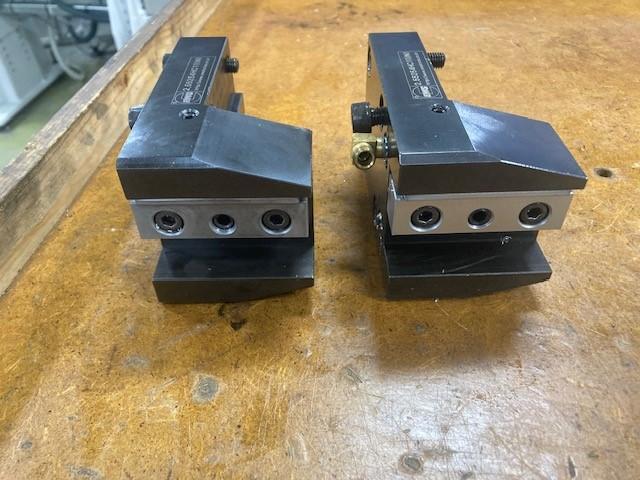

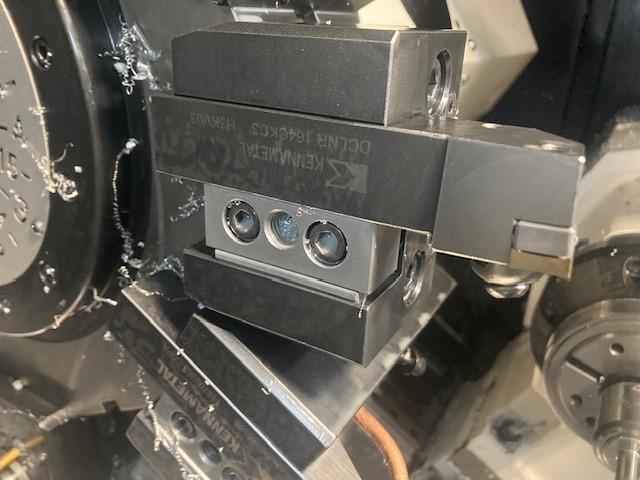

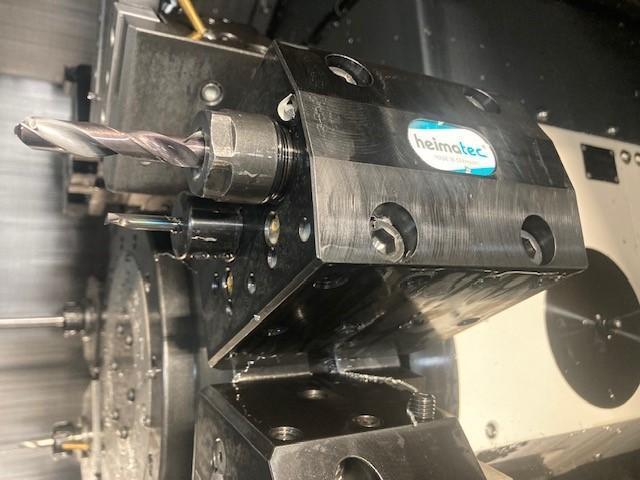

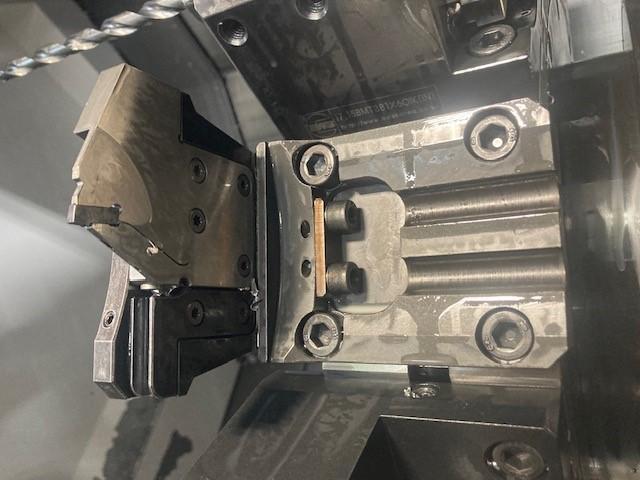

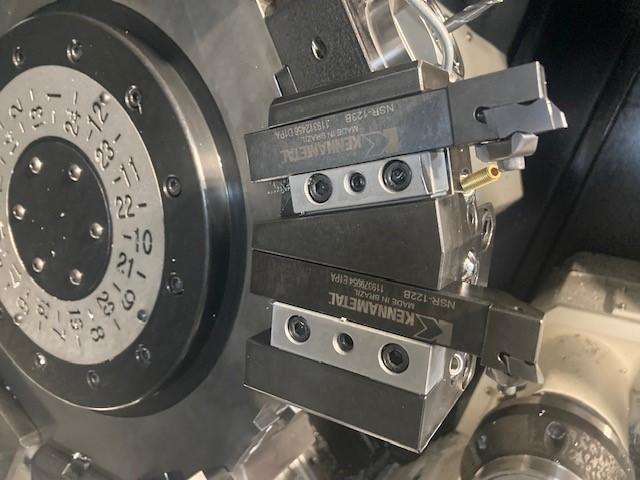

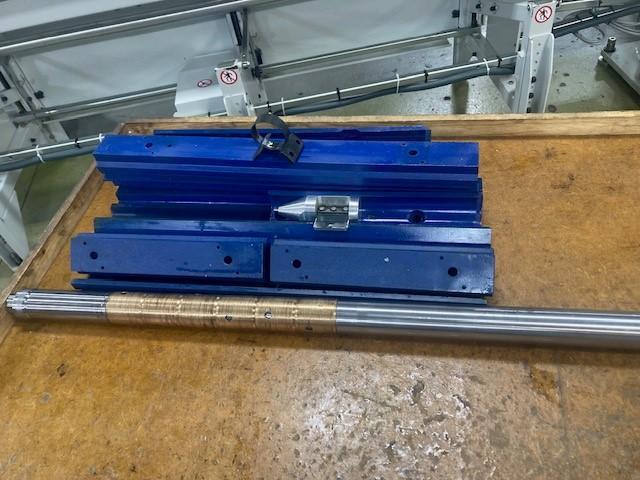

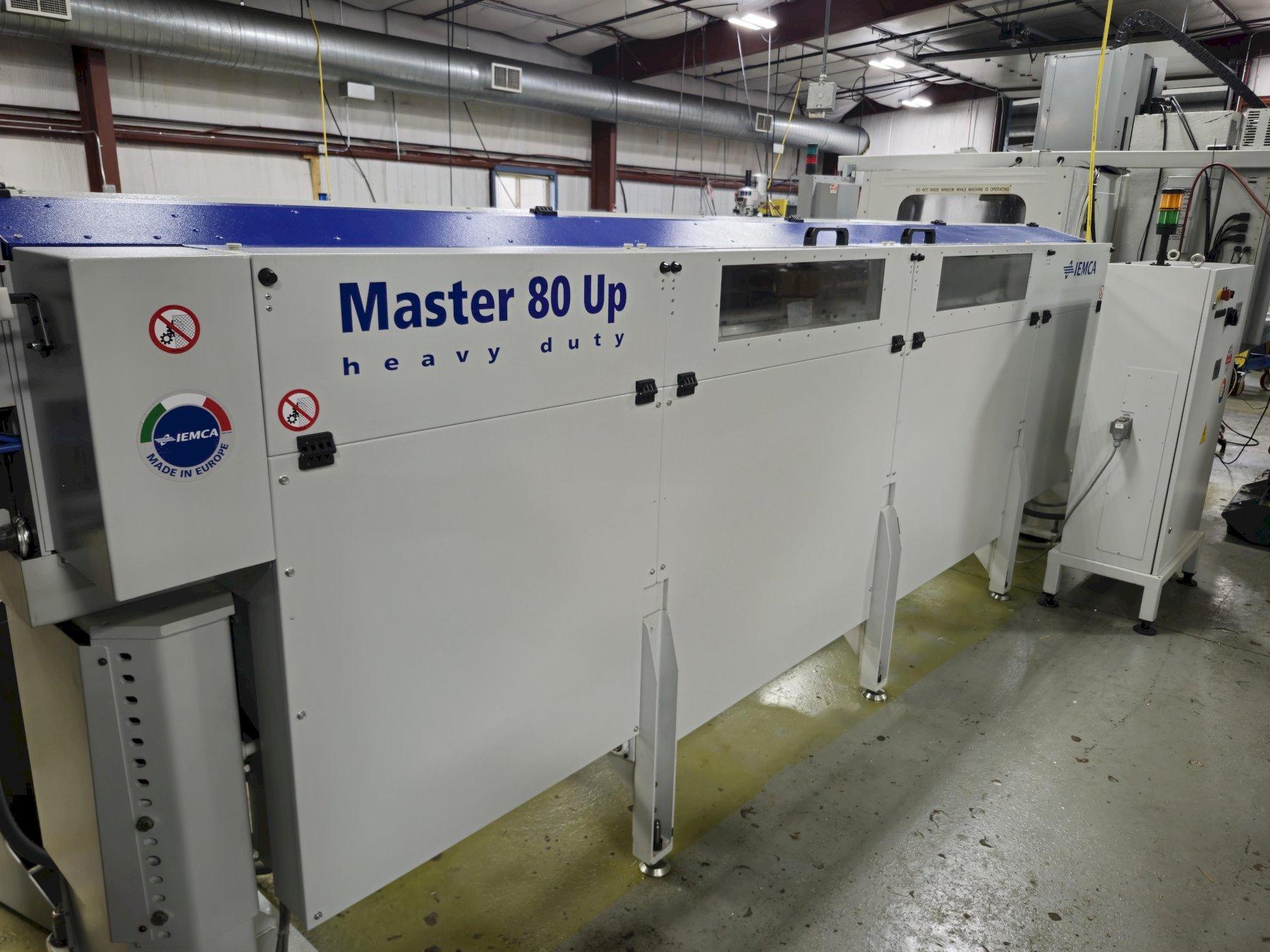

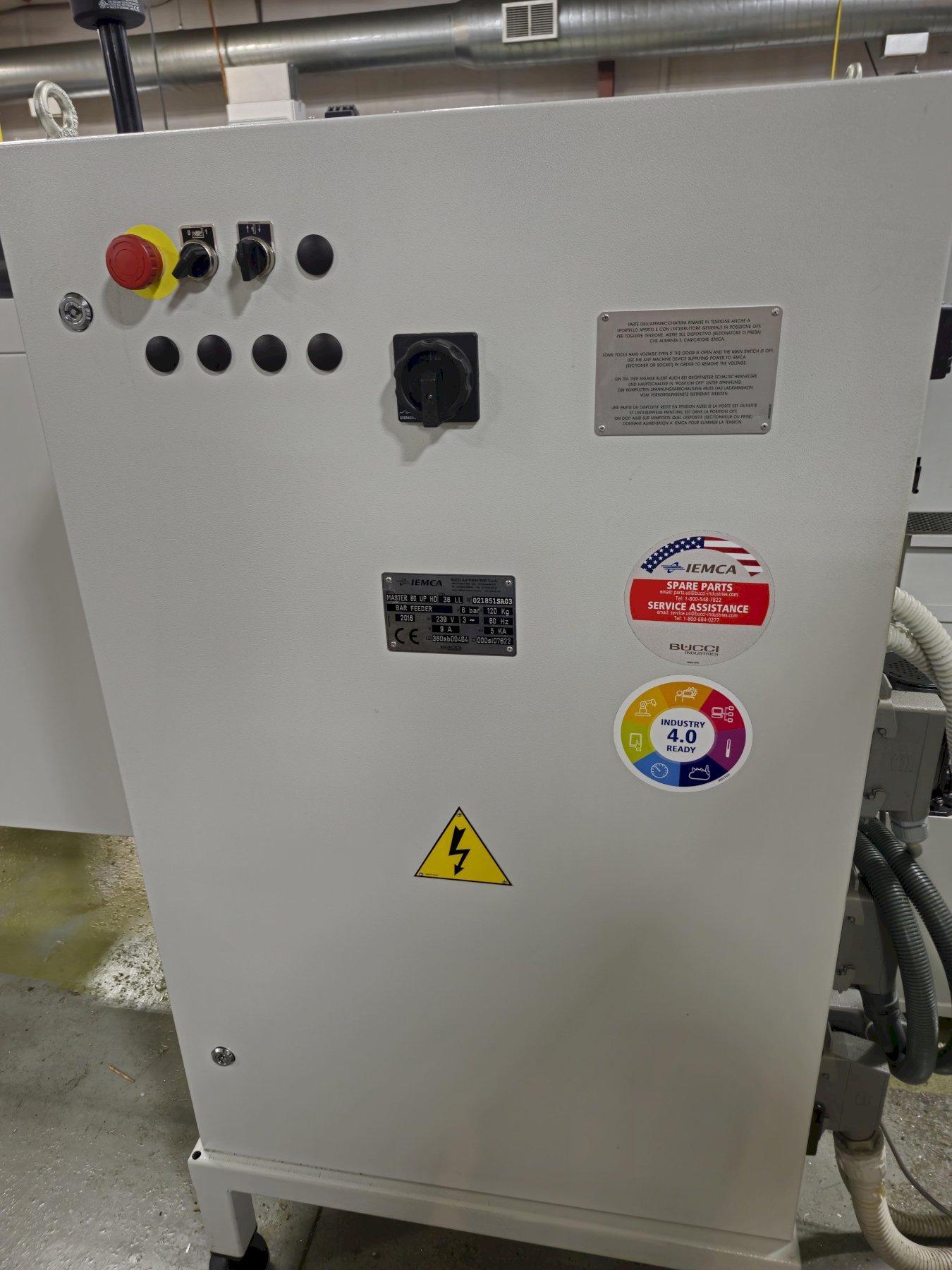

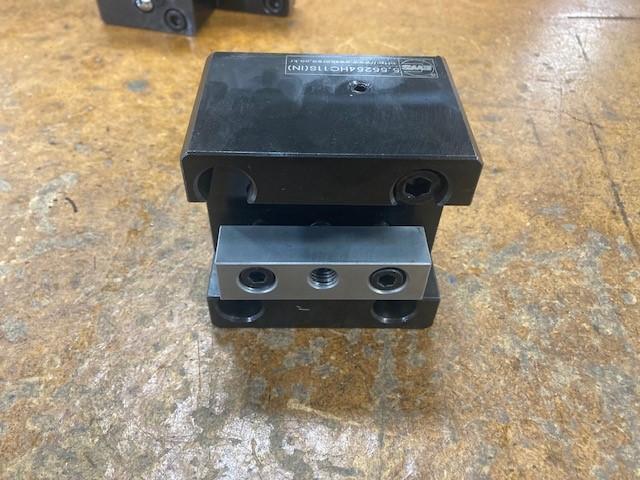

| Hwacheon Fanuc Oi-TF Plus CNC Control Bar Feeder interface IEMCA Master 80 UP Magazine Bar Feeder, New 2018 Chuck Pressure Check Switch Coolant Level Sensor Digital Tailstock Double I.D. Holder (for 24 Postions) Double O.D. Holder (for 24 Postions) High Pressure Pump, 6 Bar 6" Sub Chuck 12 Station Turret with Turn Mill Axial Tooling Radial Tooling Chip Conveyor L-HTLD - Load Dectection Parts Catcher Rigid Tapping Signal Lamp Tool Presetter Tool Kit and Box Manuals - Operation, Parts, Etc. |
