Brand
DMG MORI
Model
NHX5000 CPP Gen2
Type
Machining Centers, Horizontal
Stock #
56048
Condition
Not specified
Year
2017
Highlights

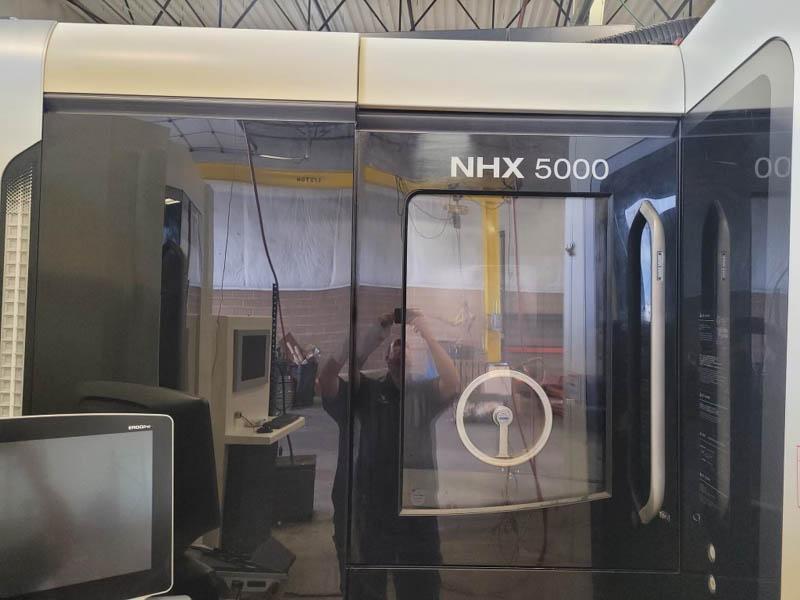

2017 DMG Mori NHX5000 CPP Gen2 (6-Pallet) CNC Horizontal Machining Center| CNC Control | yes |

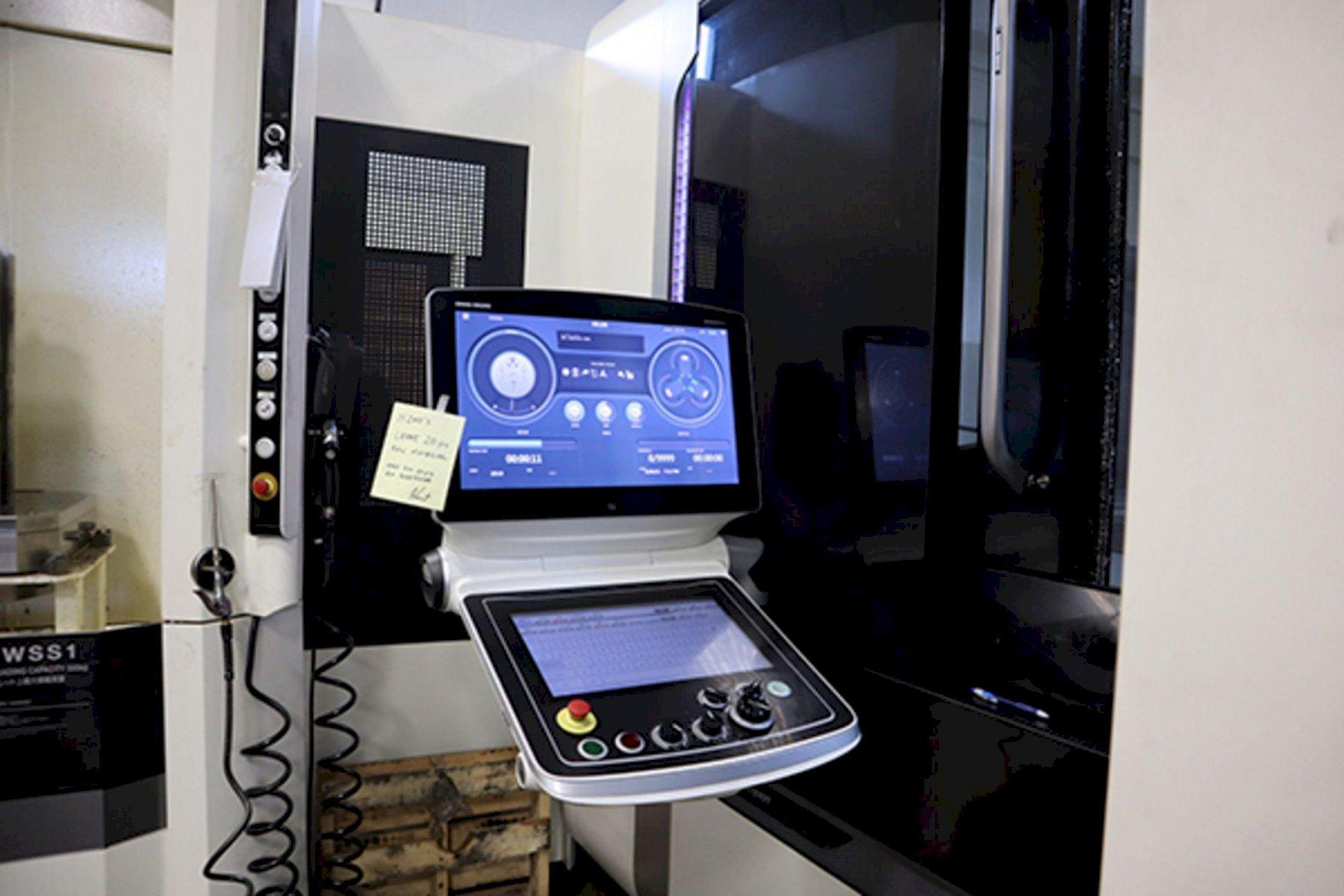

| Type of CNC Control | Celos Control (M-730UM) |
| Pallet Size | 19.7" x 19.7" |
| Pallet-W | 19.7 inches |
| Pallet-L | 19.7 inches |
| Pallet Capacity | 1100 pounds |
| X | 28.7 inches |
| Y | 28.7 inches |
| Z | 34.6 inches |
| MAX WORKPIECE HEIGHT: | 39.4" |

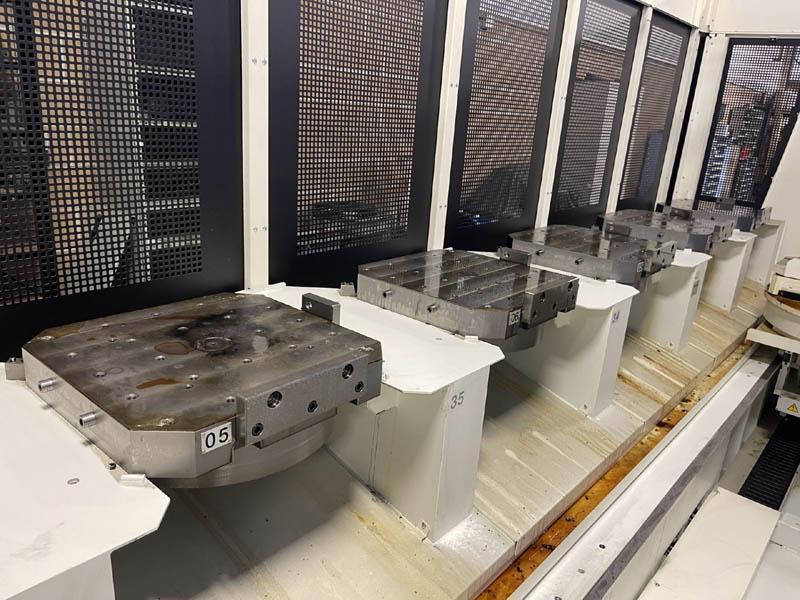

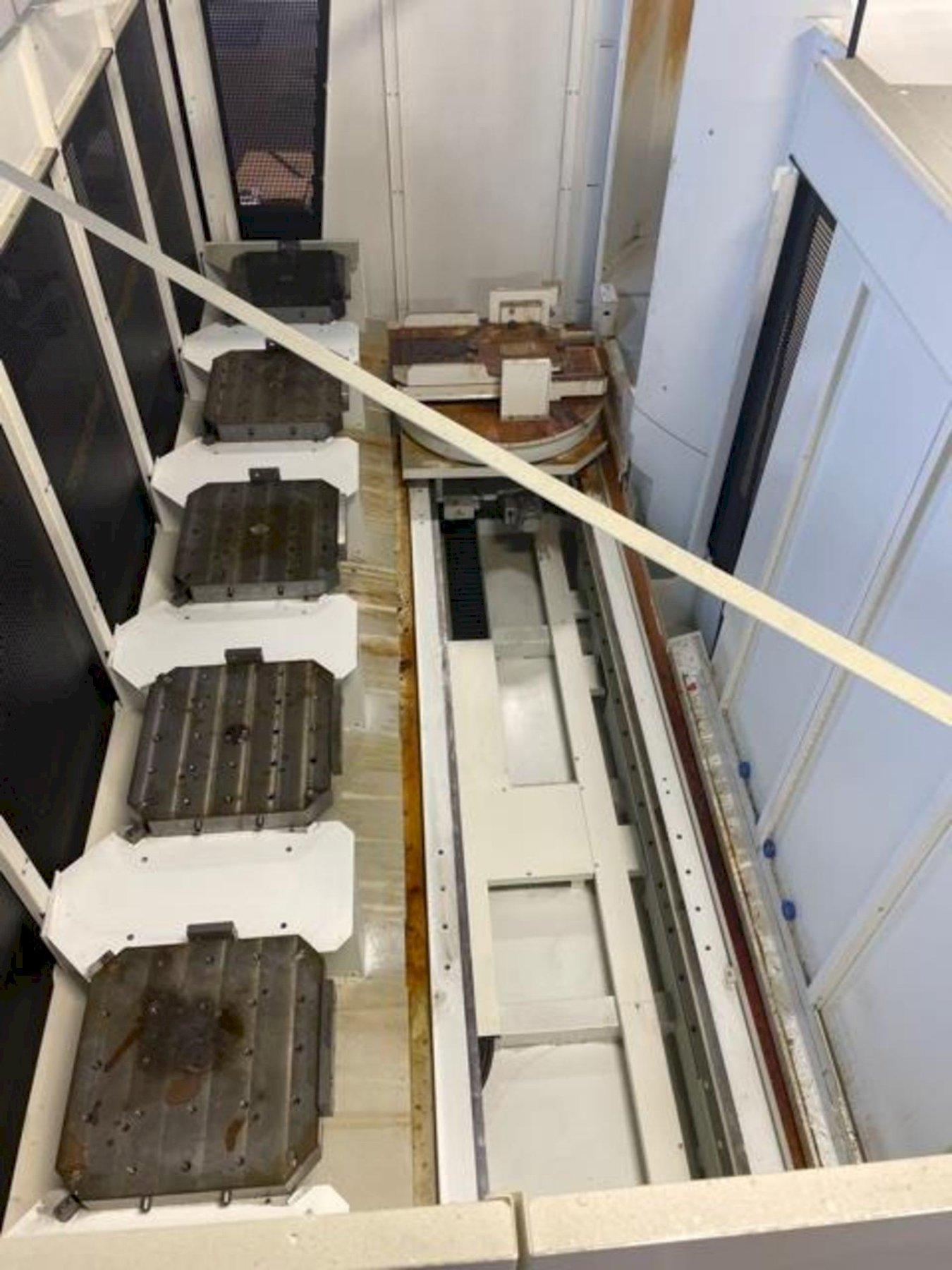

| Number of Pallets | 6 |
| Distance From Pallet Center to Spindle gage plane | 2.8 - 37.4" |
| Rapid Traverse Rate - mm/min (ipm) - X, Y, Z | 2,362.2 |
| Cutting Feedrate - mm/min (ipm) - X, Y, Z | 0 - 2,632.2 |
| Spindle Speed | 20,000 RPMs |
| Spindle Drive Motor | 50 / 34.7 / 24.70 < 15%ED / 30 min - cont> |

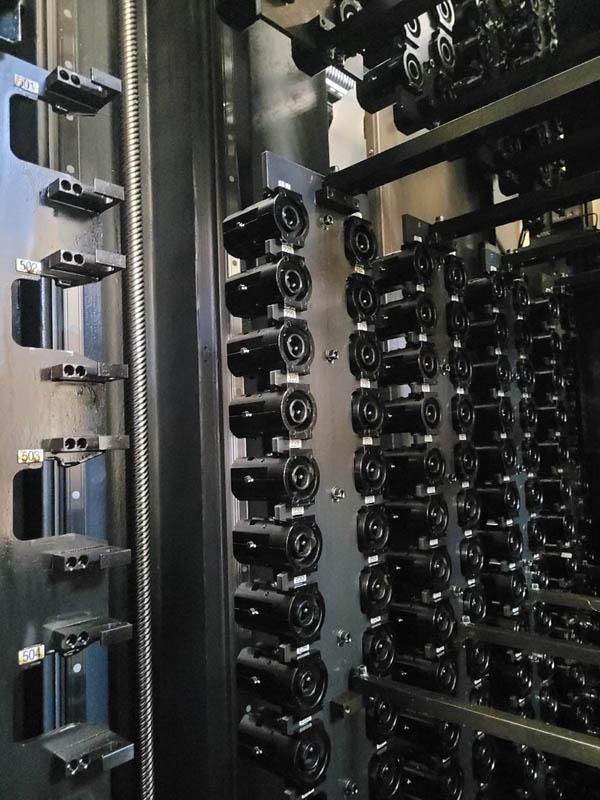

| Tool Changer Capacity | 240 |
| Type of Tool Shank | HSK-A63 |
| Dimensions | Height - 114" |

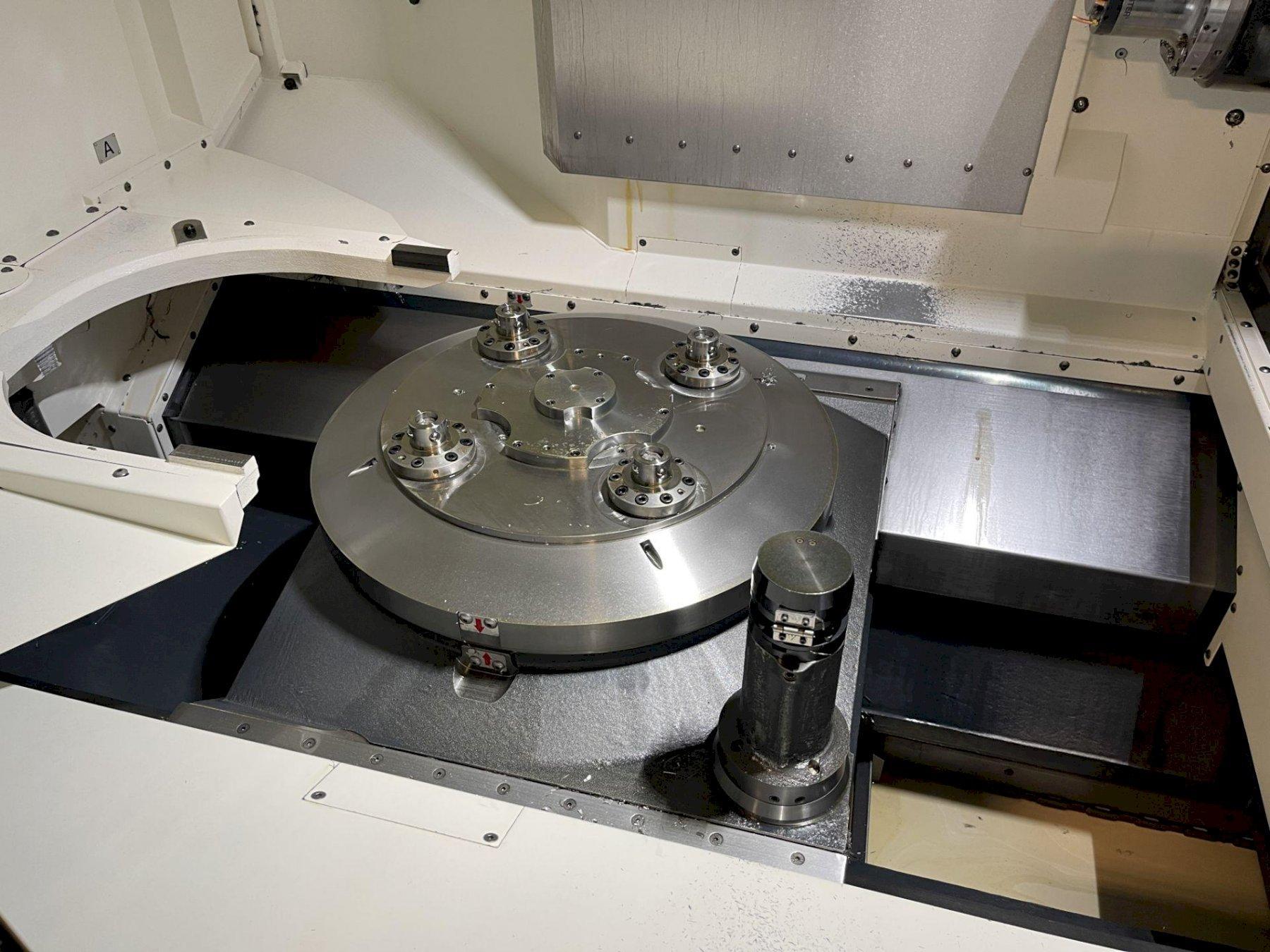

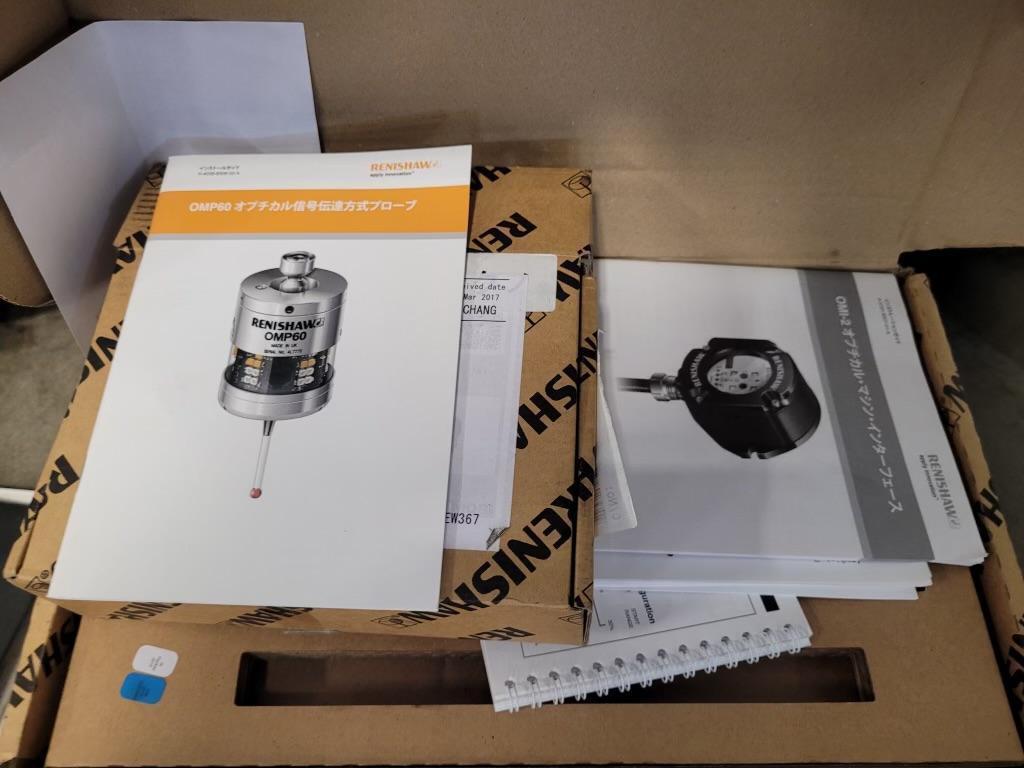

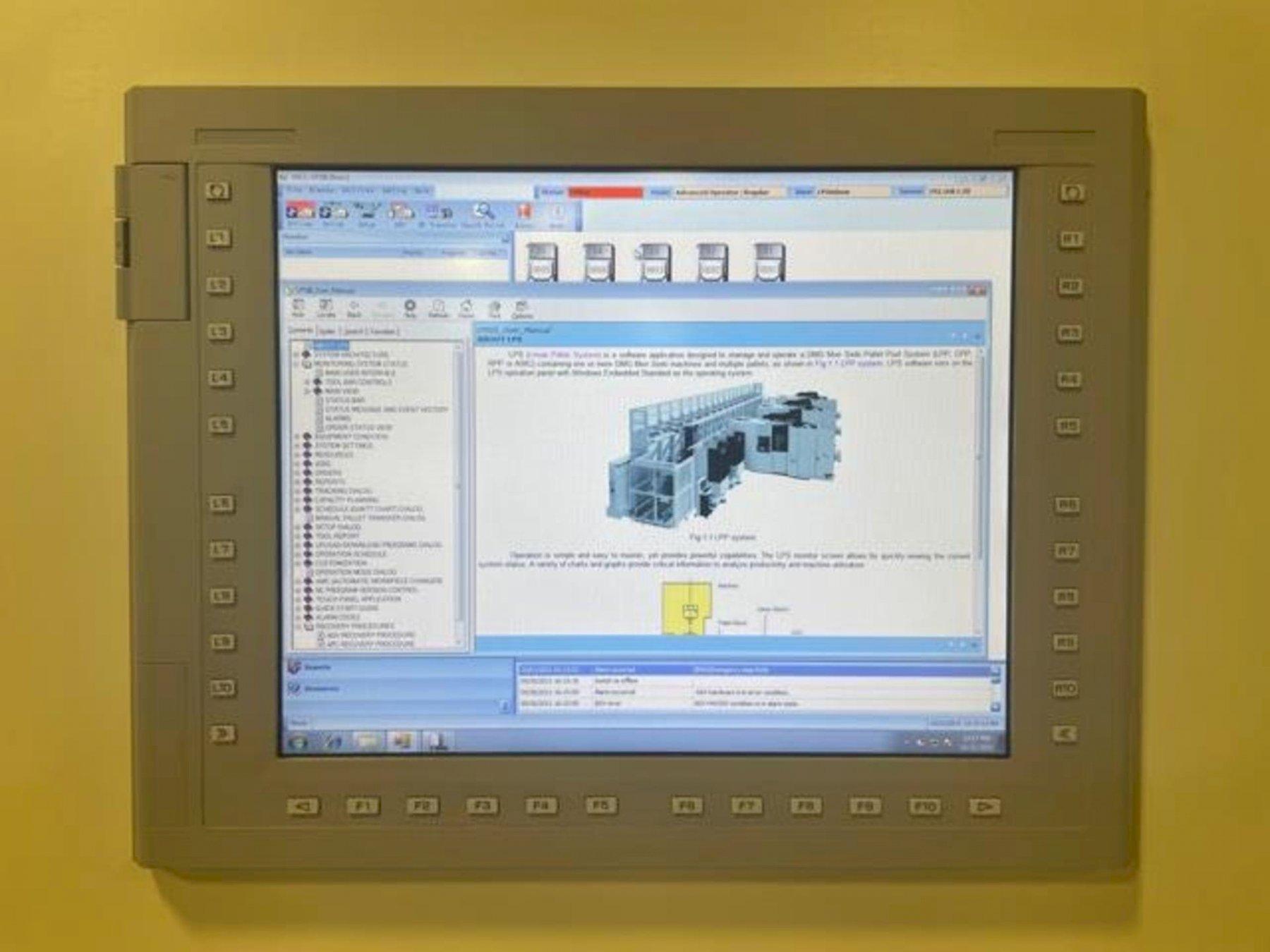

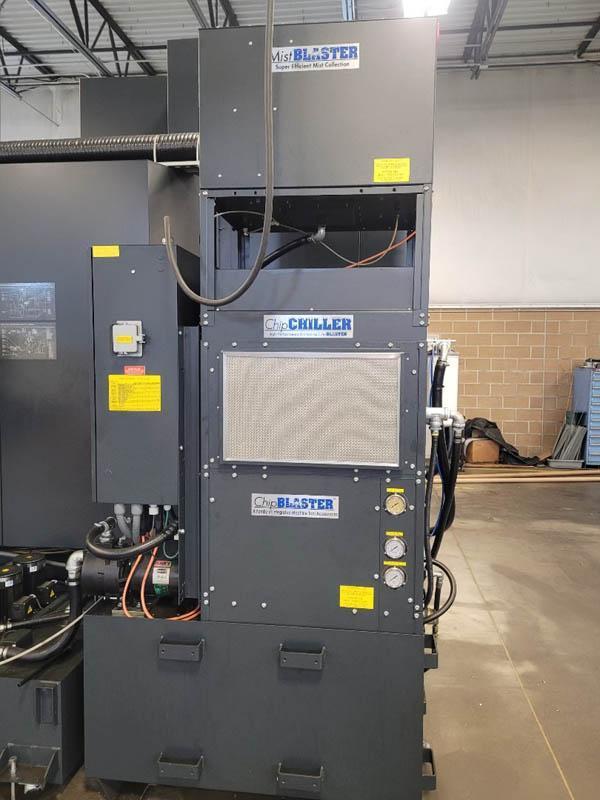

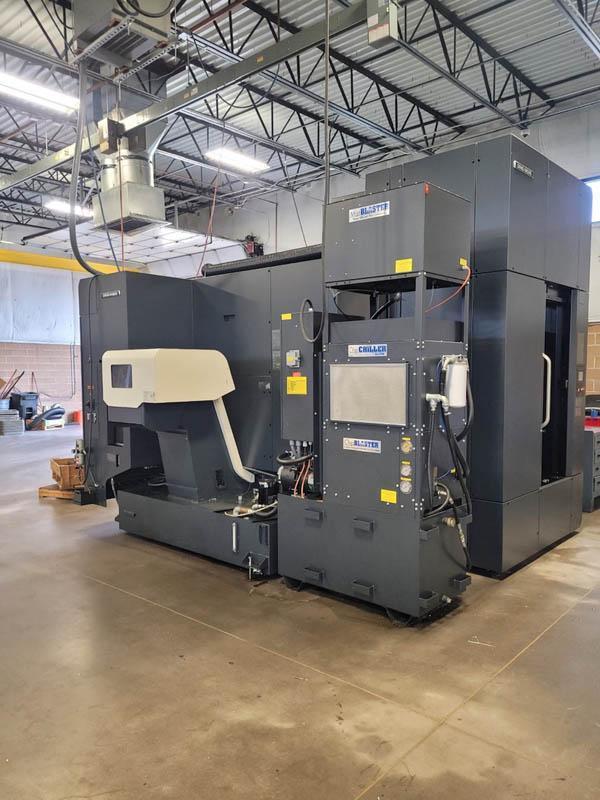

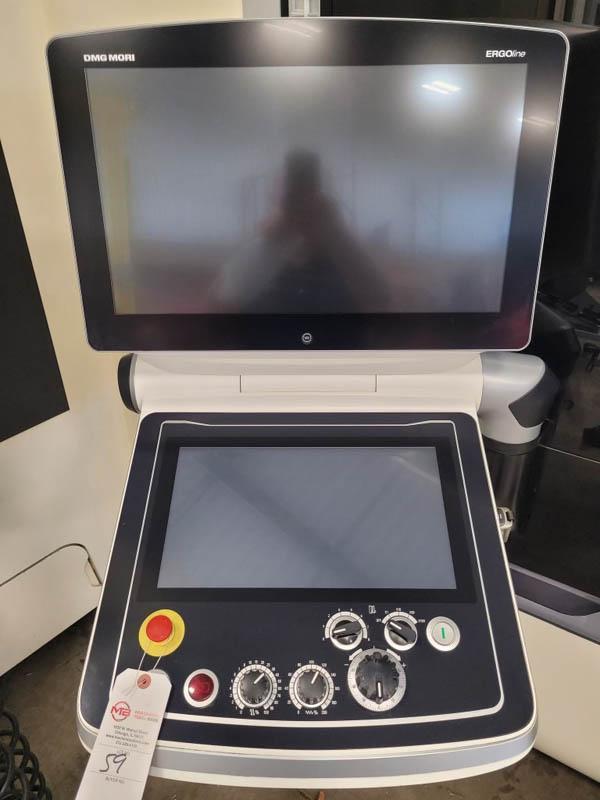

Equipped With (subject to buyer verification): Celos Control (M-730UM) Ergoline Touch 20,000 RPM HSK-A63 Spindle ChipBlaster JV40 Unit – 1000 PSI High Pressure Thru Spindle Coolant 240 ATC Renishaw Probe-Optical Type Chip Conveyor Full 4th Axis Rotary Table Tool Setter
|
